Product Description

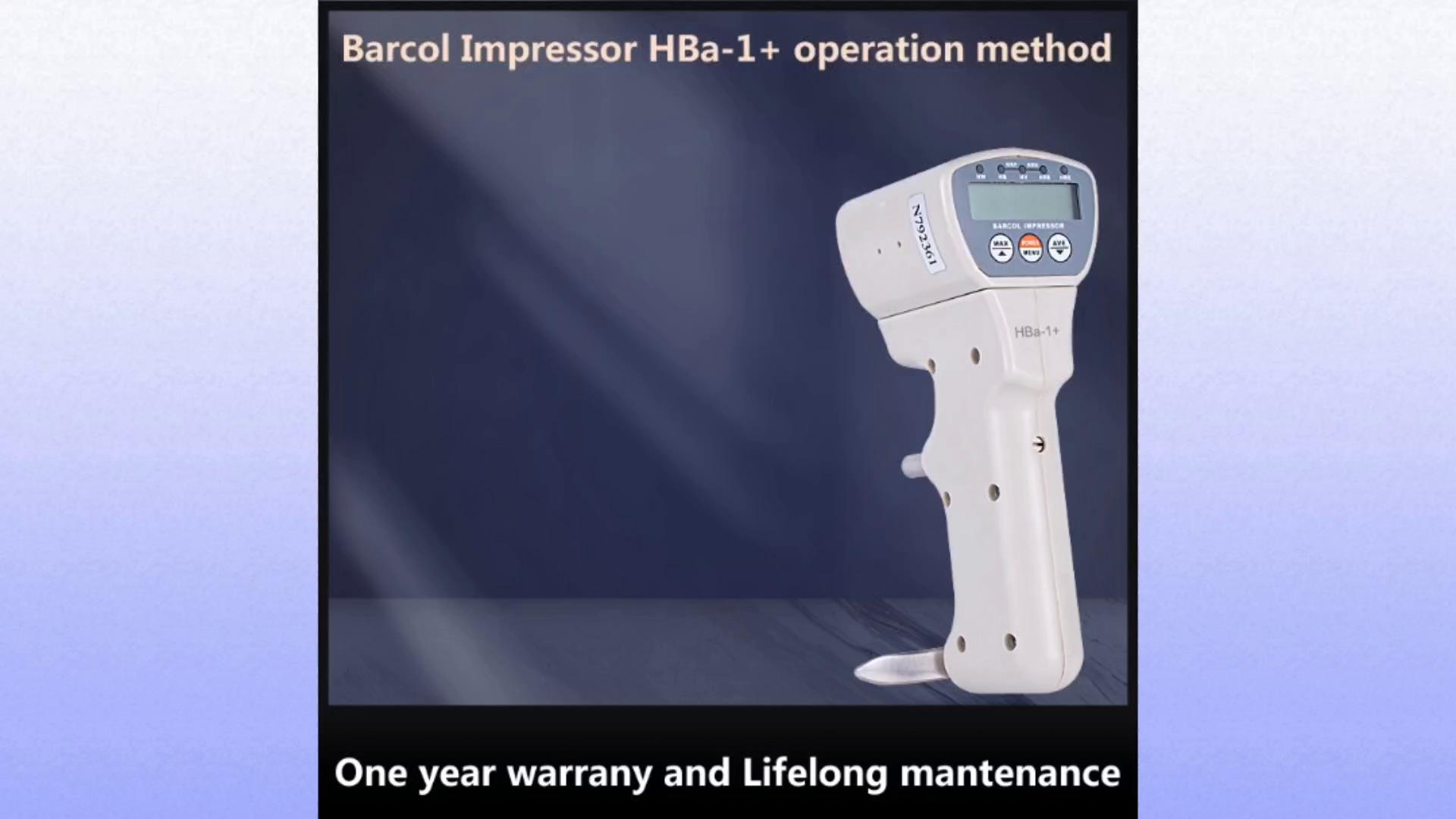

HBa-1+, a digital indentation hardness tester, is the latest design and development of our company. It is characterized in that
provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting. It is
with good stability, convenient calibration, and high accuracy of detection. It is mainly used in aluminum processing industry,
testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum
forgings and aluminum alloy products. Also, it can be used for glass steel industry. The relevant standard is ASTM B648-10 (2015),
ASTM D2583-13, and GB / T 3854-2005.
Product Features
* Small in size, portable. Single hand operation, easy to use. Can
be used in any occasion as long as the hand can reach.
* Wide test range, can test from very soft pure aluminum to a
particularly hard aluminum alloy. effective test range equivalent
to the Brinell Hardness of 25~135HB.
* No need to be supported. Just test on one side of the sample
with the hardness tester, no need to be supported. It is suitable
for the test of large and extra thick workpiece.
* With the maximum hold function, recording the maximum
hardness value during measurements.
* Can be used for measuring not only Barcol Hardness, but also
Brinell Hardness (HB), Vickers Hardness (HV), Webster
Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
* With the function of calculating the average value, can calculate
the average value of the 29 sets of data at most.
Product Parameters
Parameters
| Barcol Hardness (Hba), Brinell Hardness (HB), Vickers Hardness (HV),
Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH)
|
Measurement Range
| 0~100 HBa, equivalent to the Brinell hardness of 25~135HB
|
Resolution
| 0.1 HBa
|
Indication Error
| 81~88 HBa±1 HBa
|
42~48 Hba±2 HBa
|
Repeatability Error
| 81~88 HBa±1.5 HBa
|
42~48 HBa±2.5 Hba
|
Operating Condition
| Temperature: 0~50°C
|
Humidity:<80%rh
|
Size
| 170x63x82 mm
|
Power Supply
| 2x1.5vAAA Um-4 Battery
|
Weight
| 390g (Not Including Batteries)
|
Product Accessories
Standard Accessories
| Main Unit
|
2 Pins
|
2 Standard Blocks
|
Screw Driver
|
Spanner,
|
Carrying Case
|
Operation Manual
|
Optional Accessories
| Bluetooth data output
|
CATALOG
MANUAL
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.
